Technical Architecture

This section is the architecture entry point for the XR viewer.

Use the linked sections below to navigate the implementation details:

Purpose and Scope​

This document describes the current technical architecture of the CASSANDRA XR Unity project as implemented in the repository.

The goal is to document:

  • The runtime architecture
  • The role of the main subsystems
  • How data moves from backend services into the Unity scene
  • How volumetric medical data is loaded and rendered
  • How voice, AI, UI, and XR features interact
  • How the project is configured for Quest and desktop targets
  • The current technical constraints, assumptions, and risks

This is an implementation-oriented document. It describes what the codebase currently does, not only what the product is intended to do.

High-Level System Overview​

CASSANDRA XR is a Unity-based XR client for interactive exploration of medical volume data in mixed reality and desktop contexts.

At runtime, the application performs five primary jobs:

  1. Fetches the active study and asset metadata from a backend REST API
  2. Downloads and caches .vrdf volumetric datasets locally
  3. Decodes those datasets into Unity Texture3D resources
  4. Renders the volume through custom URP raymarching shaders
  5. Exposes the study through immersive UI, report viewing, and a voice/AI assistant

The system is scene-driven. Most application logic is attached to MonoBehaviour components placed in MainScene and connected through serialized inspector references.

System overview diagram for the CASSANDRA XR runtime

System overview of the CASSANDRA XR runtime, including the backend boundary, viewer subsystems, and scene-level coordination path.

System Map​

The simplified map below shows the main runtime slice and the secondary voice/AI slice:

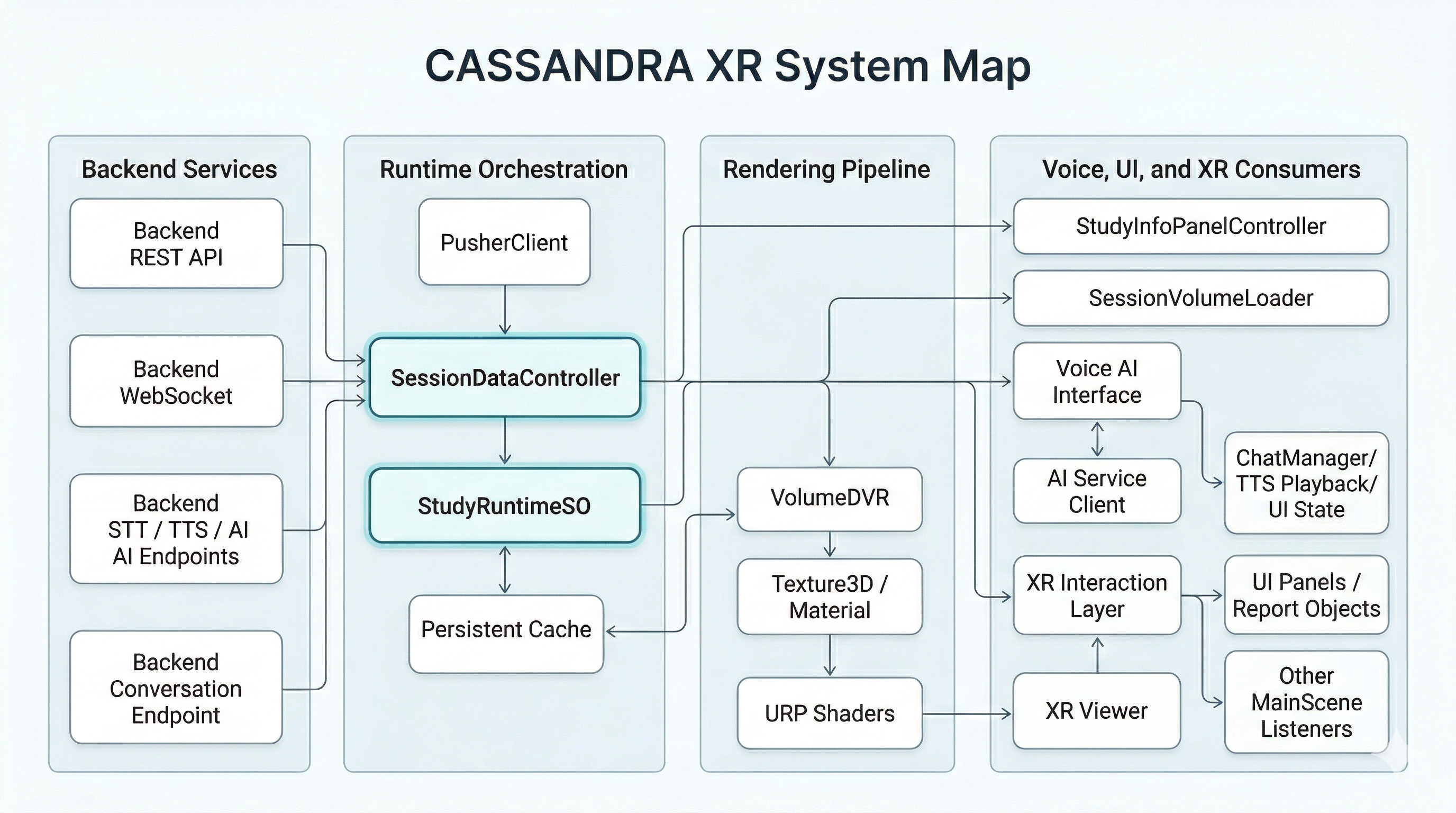

System map for the CASSANDRA XR runtime

High-level system map showing backend services, runtime orchestration, rendering flow, and the voice/UI/XR consumers around the active study state.

Technology Stack​

Engine and Core Runtime​

  • Unity Editor version: 6000.2.6f2
  • Render pipeline: Universal Render Pipeline (URP)
  • Scripting runtime: C# / Assembly-CSharp
  • Input system: Unity Input System
  • XR framework:
    • com.unity.xr.management
    • com.unity.xr.openxr
    • com.unity.xr.meta-openxr
    • com.unity.xr.hands
    • com.unity.xr.interaction.toolkit
    • Meta XR SDK Core

Networking and Serialization​

  • REST: UnityWebRequest
  • WebSocket: websocket-sharp.dll
  • JSON:
    • Newtonsoft.Json for backend payloads and websocket frames
    • JsonUtility for local simple payload parsing

Voice and AI​

  • Wake word: Picovoice Porcupine
  • STT and TTS: external backend endpoints provided dynamically by backend configuration
  • Conversational assistant: Gemini-compatible backend endpoint provided per study

Volume Rendering​

  • Custom .vrdf binary container format
  • Runtime conversion to Texture3D
  • Custom HLSL URP shaders:
    • Assets/Shaders/VolumeDVR_URP.shader
    • Assets/Shaders/VolumeDVR_URP_Quest.shader

The public technical context around this repository is split across three GitHub projects:

  • CASSANDRA XR
    • the main application repository documented here
  • VRDF SDK
    • the companion repository for the .vrdf volume container, its export modes, and cross-platform tooling
  • HybridMedRenderer
    • a related prototype and research-oriented renderer that explored hybrid surface and volume rendering with VRDF support

This documentation focuses on the code shipped in this repository. The VRDF SDK is the public companion reference for the format itself, while HybridMedRenderer provides useful background on the renderer lineage that informed the current viewer.

Repository Layout​

The repository contains both product code and a significant amount of imported Unity sample/package content.

Primary Product Code​

  • Assets/Scripts/API
  • Assets/Scripts/Chatbot
  • Assets/Scripts/DVR
  • Assets/Scripts/Interaction
  • Assets/Scripts/UI
  • Assets/Scripts/VRDF
  • Assets/Scripts/XR
  • Assets/Shaders
  • Assets/Scenes/MainScene.unity
  • Assets/Settings
  • Assets/Plugins/Android
  • Assets/android_config

External or Imported Content​

  • Assets/Samples
  • Assets/Porcupine partly third-party
  • Assets/TextMesh Pro
  • XR Interaction Toolkit sample assets
  • XR Hands sample assets

Assembly Organization​

There are no custom asmdef files for the application code under Assets/Scripts. As a result:

  • Most custom code compiles together into Assembly-CSharp
  • There is no hard compile-time separation between modules
  • Boundaries are architectural conventions rather than enforced code boundaries

Architectural Style​

The application follows a Unity-native, scene-composed architecture:

  • MonoBehaviour components own most runtime behavior
  • A ScriptableObject is used as the main shared runtime state container
  • Event callbacks and serialized references are the primary coordination mechanisms
  • A small number of static properties are used for shared configuration values
  • Platform and build behavior is partly encoded in Unity assets and partly in editor scripts

This is not a layered enterprise architecture with strict dependency inversion. It is better understood as a feature-oriented Unity app with a few key vertical slices:

  • Study acquisition and synchronization
  • Volume load and rendering
  • Voice and AI interaction
  • Metadata and report display
  • XR and UI interactions
