Scene and Runtime Flows

MainScene Composition​

Assets/Scenes/MainScene.unity is the primary runtime scene.

Based on the serialized scene wiring, the key active objects include:

  • WebsocketManager
    • PusherClient
  • StartupManager
    • StudyService
    • SessionVolumeLoader
    • SessionDataController
  • DVRVolume
    • VolumeDVR
  • Dropdown and loading UI
    • DropdownVolumeLoader
    • ModernProgressBar
    • ProgressPanelAnimator
  • Chat and voice
    • ChatManager
    • PorcupineWakeWordListener
    • GeminiVoiceInterface
    • MicButtonPulse
  • Metadata
    • StudyInfoPanelController
    • FaceUser
  • Report object
    • PageDisplay
    • ReportGrabAndSwipe
  • XR and platform support
    • XR Origin (Mobile AR)
    • AR Session
    • ForceFFR
    • PermissionsCheck

The scene therefore combines:

  • startup orchestration
  • networking
  • volume visualization
  • voice/AI interaction
  • metadata display
  • report display
  • platform-specific XR support

in a single scene composition.

End-to-End Runtime Sequences​

The sequence diagram below summarizes the three most important runtime paths:

  • Initial startup: scene bootstrap, study fetch, cache download, first volume load, and UI reveal
  • Websocket-triggered reload: backend state change, main-thread dispatch, reload request, and modality refresh
  • Voice interaction: user or wake-word trigger, recording, transcription, conversational request, response playback, and chat update

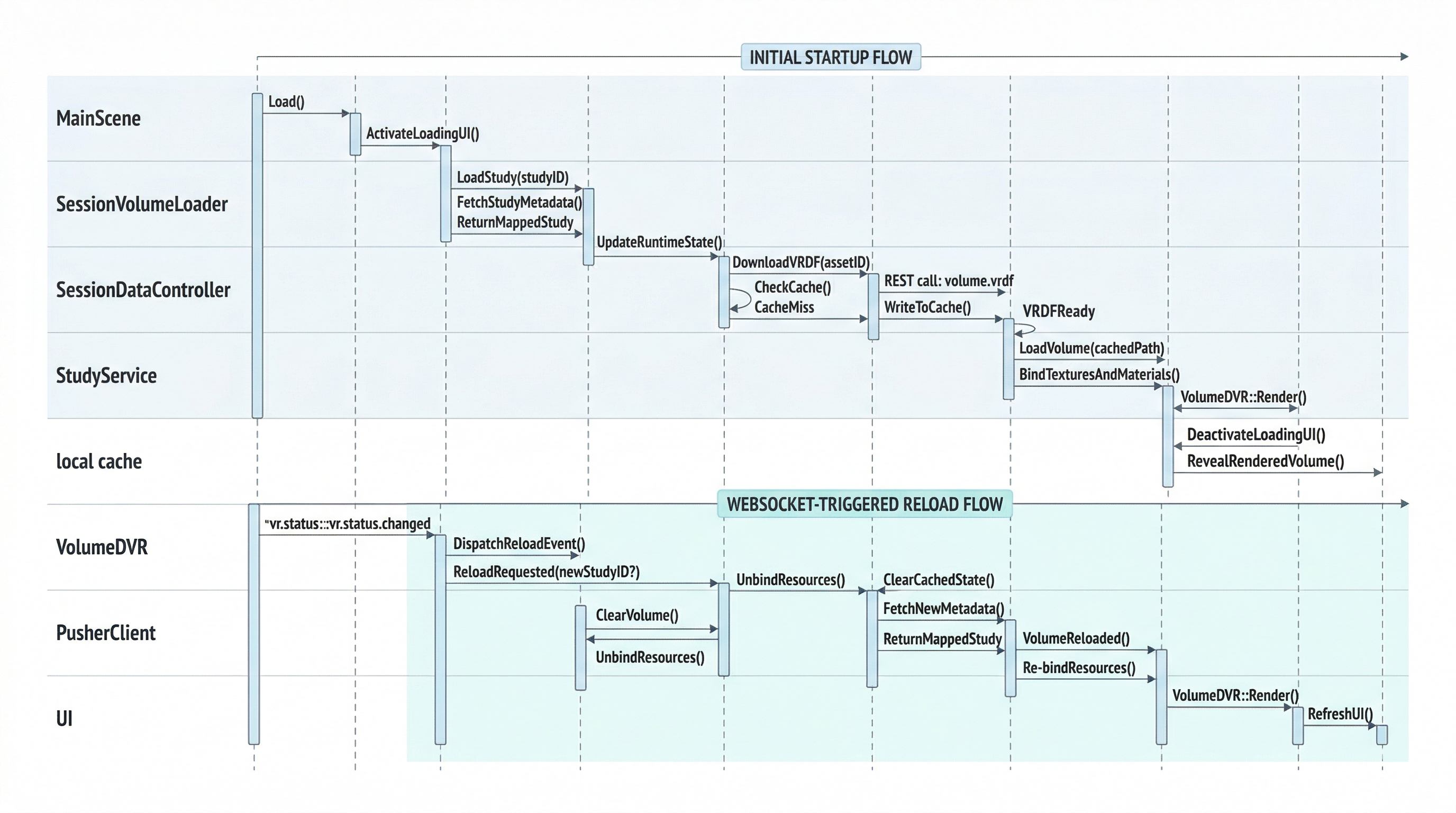

Startup and reload sequence diagram

Startup, reload, and interaction flow across the scene bootstrap, websocket updates, and voice runtime.

Initial Startup Sequence​

  1. MainScene loads
  2. PusherClient starts and attempts websocket connection
  3. SessionVolumeLoader.Start() shows loading UI and calls SessionDataController.BeginLoad()
  4. SessionDataController calls StudyService.FetchStudies()
  5. REST payload is mapped into StudyForUnity
  6. Backend config values are published:
    • Picovoice access key
    • STT URL
    • TTS URL
  7. StudyRuntimeSO is updated with the active study
  8. All VRDF assets are downloaded into persistent storage
  9. SessionVolumeLoader calls VolumeDVR.LoadVolumeByCodeAsync()
  10. VolumeDVR decodes the selected modality file
  11. Textures and LUTs are bound to the material
  12. The placeholder brain crossfades into the rendered volume
  13. Loading UI is faded out

Websocket Reload Sequence​

  1. Backend sends vr.status.changed
  2. PusherClient parses payload and enqueues it
  3. PusherClient.Update() dispatches the payload on the main thread
  4. SessionDataController.HandleVrStatusChanged() compares current study state
  5. If study code or VR mode changed:
    • StudyRuntimeSO.Clear()
    • OnReloadRequested emitted
  6. SessionVolumeLoader receives the reload event
  7. Visuals reset and a new load pipeline starts

Modality Change Sequence​

  1. User changes dropdown selection
  2. DropdownVolumeLoader starts a transition coroutine
  3. Progress panel and placeholder are shown
  4. Selected modality code is converted to {code}_lw.vrdf
  5. VolumeDVR.LoadVolumeByCodeAsync() loads the new cached volume
  6. New textures are bound to the material
  7. Placeholder crossfades to the new volume
  8. Progress panel fades out

Voice Interaction Sequence​

  1. Wake word or input action starts listening
  2. GeminiVoiceInterface.StartRecording() begins microphone capture
  3. Silence detector auto-stops after inactivity
  4. WavUtility converts the clip to WAV bytes
  5. STT endpoint returns transcription text
  6. GeminiClient.SendPrompt() posts the prompt to the active conversation endpoint
  7. Chat UI shows typing placeholders during processing
  8. Response is parsed and rendered in the chat window
  9. TTS endpoint is called and audio chunks are played back

Data and Event Model​

Core Runtime Events​

SessionDataController:

  • OnAccessKeyReady
  • OnReloadRequested
  • OnStudiesReady
  • OnDownloadProgress
  • OnDownloadCompleted
  • OnError

PusherClient:

  • OnVrStatusChanged

StudyRuntimeSO:

  • OnChanged

GeminiVoiceInterface:

  • OnStartListening
  • OnStopListening

Runtime State Ownership​

  • Active study metadata: StudyRuntimeSO
  • Downloaded volume cache: Application.persistentDataPath
  • Active volume textures: VolumeDVR
  • Active chat display/history: ChatManager
  • Active voice configuration: SessionDataController static properties
