Rendering Pipeline

This page describes how CASSANDRA XR turns a cached .vrdf file into a rendered interactive medical volume.

Scope​

The rendering path documented here covers:

  • file selection by modality
  • VRDF decoding
  • Texture3D and LUT construction
  • material binding
  • shader selection
  • runtime label control
  • scale and reload behavior

The main implementation lives in:

  • Assets/Scripts/DVR/VolumeDVR.cs
  • Assets/Scripts/VRDF/VolumeVRDFLoader.cs
  • Assets/Shaders/VolumeDVR_URP.shader
  • Assets/Shaders/VolumeDVR_URP_Quest.shader

Render Pipeline Overview​

At a high level, the viewer-side rendering pipeline follows these stages:

  1. SessionDataController selects the active modality
  2. VolumeDVR.LoadVolumeByCodeAsync(code) resolves the source file from cache or StreamingAssets
  3. VRDFLoader.LoadFromFile(path) parses the .vrdf container
  4. VRDFLoader.BuildUnityTextures(data) creates the runtime textures and LUT inputs
  5. VolumeDVR.ApplyAfterLoad() binds textures, control state, and metadata to the material
  6. The active URP shader raymarches the volume into the final XR output

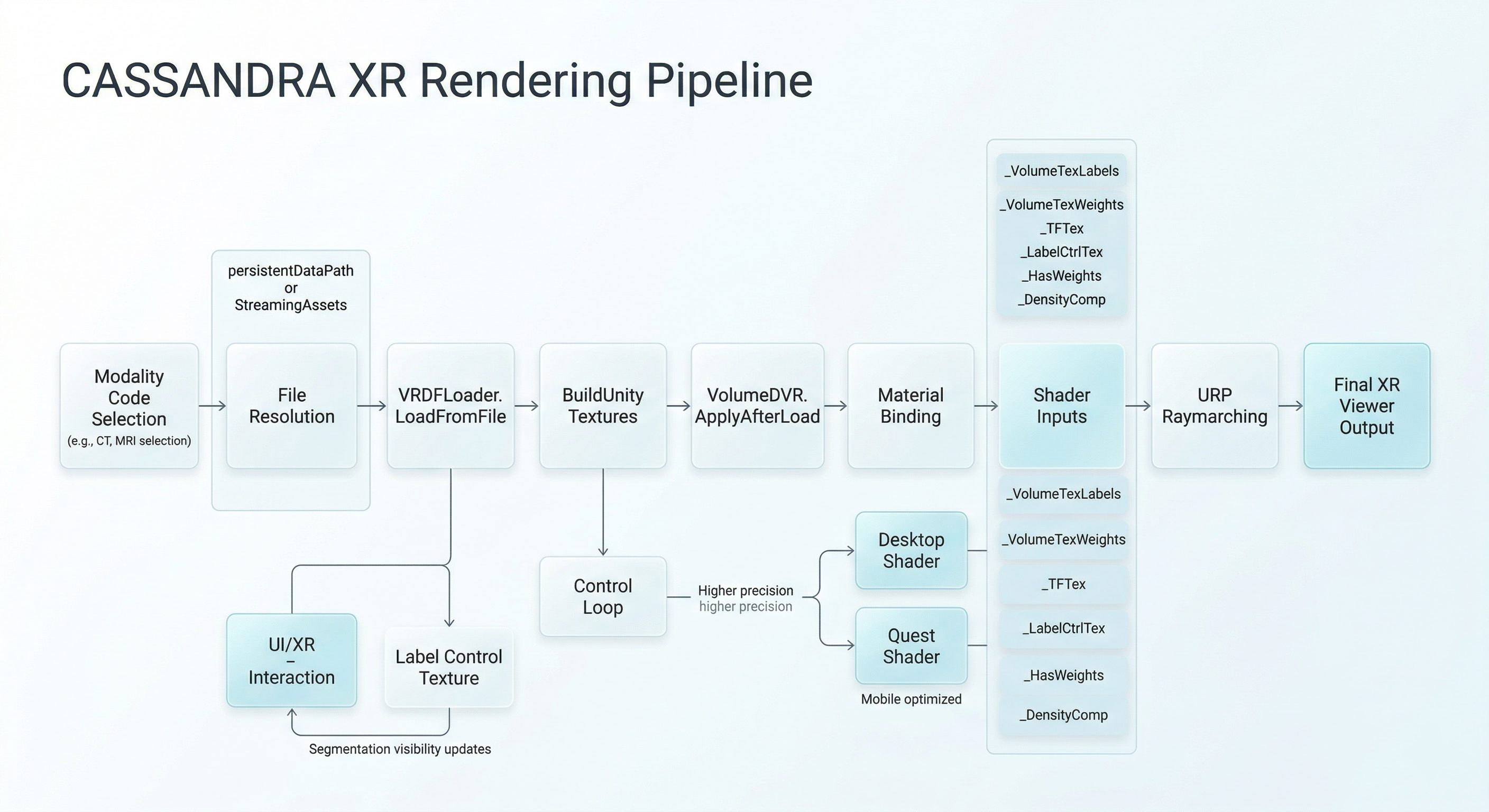

Rendering pipeline diagram

High-level rendering pipeline from cached VRDF selection through decode, material binding, and final XR volume rendering.

Volume Selection​

VolumeDVR.LoadVolumeByCodeAsync() is the entry point used by startup and modality-switch flows.

The method:

  • normalizes the modality code
  • first tries the strict filename pattern {code}_lw.vrdf
  • checks Application.persistentDataPath
  • falls back to StreamingAssets
  • scans .vrdf files by code substring if the strict path fails

That means the render pipeline is not only a graphics concern. It depends directly on study asset naming and on the cache state prepared by the orchestration layer.

Decode Stage​

Once a file is resolved, InternalLoadFused() performs the viewer-side decode path:

  1. clean up textures from the previous load
  2. parse the file via VRDFLoader.LoadFromFile()
  3. build Unity textures via VRDFLoader.BuildUnityTextures()
  4. cache references for labels, weights, and transfer-function textures

The renderer does not stream blocks incrementally. Each load reconstructs a new in-memory representation and a new set of textures.

Material Binding​

ApplyAfterLoad() is the point where decoded data becomes active viewer state.

The method calls:

  • ApplyToMaterial()
  • InitLabelCtrlTexture()
  • BuildLabelInfosFromData()
  • FitVolumeScaleFromSpacing()

Together, those steps bind the render inputs, initialize segmentation control state, build UI metadata, and scale the object in world space.

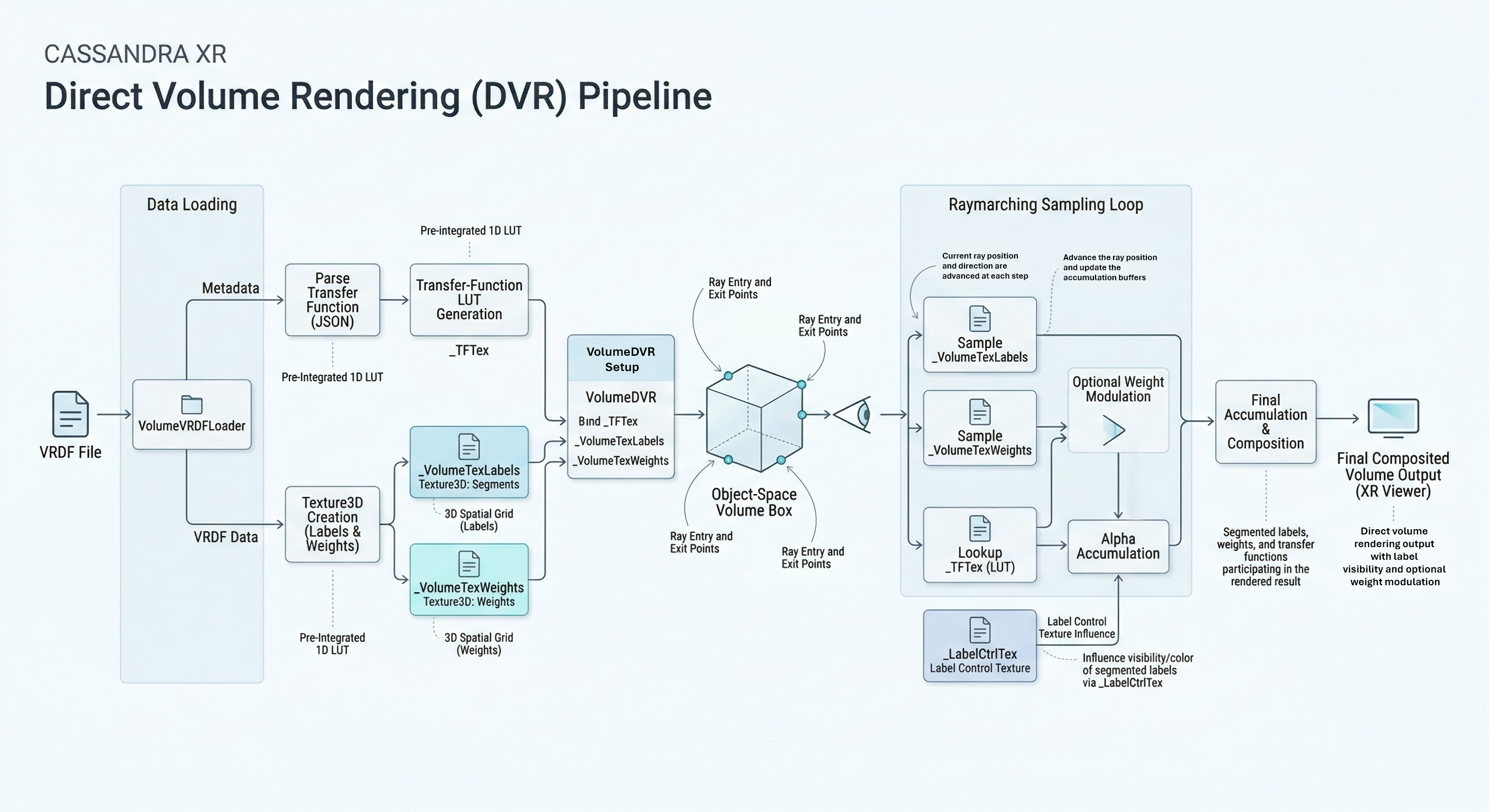

Direct volume rendering diagram in CASSANDRA XR

Direct volume rendering path inside the viewer, from decoded texture inputs to material state and render-time control surfaces.

Main Shader Inputs​

The active material receives a small set of core textures and flags.

Important texture bindings include:

  • _VolumeTexLabels
  • _VolumeTexWeights
  • _TFTex
  • _LabelCtrlTex

Important control values include:

  • _HasWeights
  • _ScaleCompensation
  • _ScaleMax
  • _DensityComp

The exact visual result depends on the shader variant and the data mode, but the material contract stays centered around those properties.

Label Control Texture​

Segmentation visibility and per-label adjustments are handled through a dedicated 2D control texture:

  • _LabelCtrlTex

The runtime creates a 256 x 1 texture where each pixel corresponds to a label index.

The stored RGBA channels act as runtime control values:

  • RGB can be used as tint
  • alpha acts as the effective visibility or opacity control

This is the main bridge between the render system and the UI layer. Menus do not rebuild the volume; they update a small control texture instead.

Runtime Label Metadata​

BuildLabelInfosFromData() extracts a UI-friendly runtime model from the transfer-function data.

Each VolumeLabelInfoRuntime includes:

  • label index
  • display name
  • default color
  • default visible state

This is what allows systems such as segmentation toggles to expose render controls without having to understand VRDF parsing directly.

World-Space Scaling​

FitVolumeScaleFromSpacing() derives the rendered object scale from:

  • volume dimensions
  • voxel spacing in millimeters

The resulting object scale is converted to meters and applied as transform.localScale.

The renderer then uses LateUpdate() to derive scale-aware density compensation values for the shader, so object resizing and physical spacing remain linked.

Shader Selection​

SelectShaderForPlatform() switches the material shader depending on the target:

  • desktop/editor: Custom/VolumeDVR_URP
  • Quest/Android: Volume/VolumeDVR_URP_Quest

This is a hard branch in the current design. The project does not use one unified shader with minor runtime toggles. Instead, it keeps a dedicated Quest-oriented path.

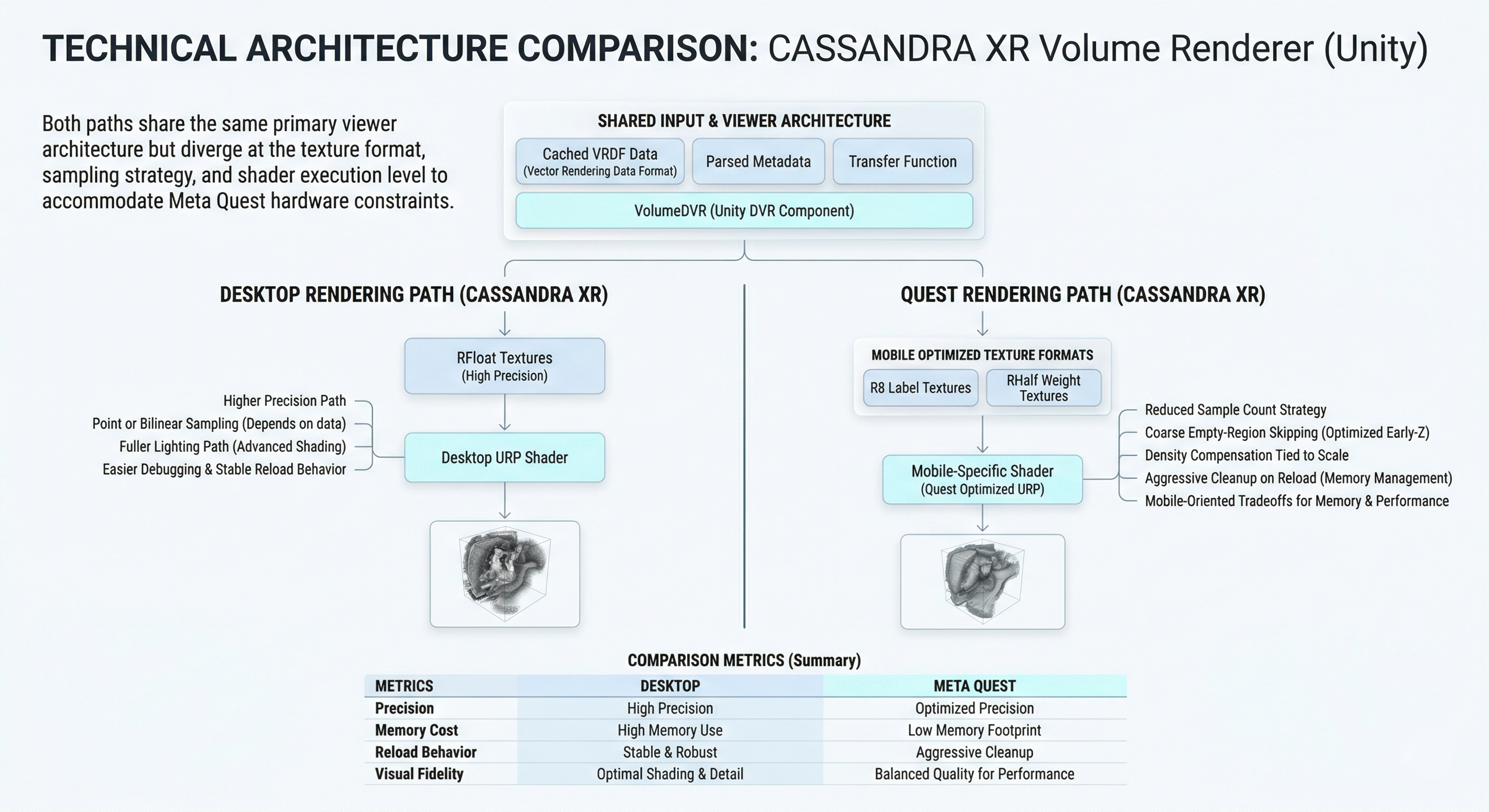

Quest versus desktop rendering comparison diagram

Comparison of the desktop and Quest rendering split, highlighting the platform-specific shader and resource tradeoffs in the current pipeline.

Desktop Shader Path​

Assets/Shaders/VolumeDVR_URP.shader is the higher-fidelity desktop path.

The architecture described by the code and current docs is:

  • transparent raymarch pass
  • object-space box intersection
  • label or continuous transfer-function sampling
  • optional weight-volume participation
  • gradient-like lighting estimation

This path is the easier one to inspect and reason about during development.

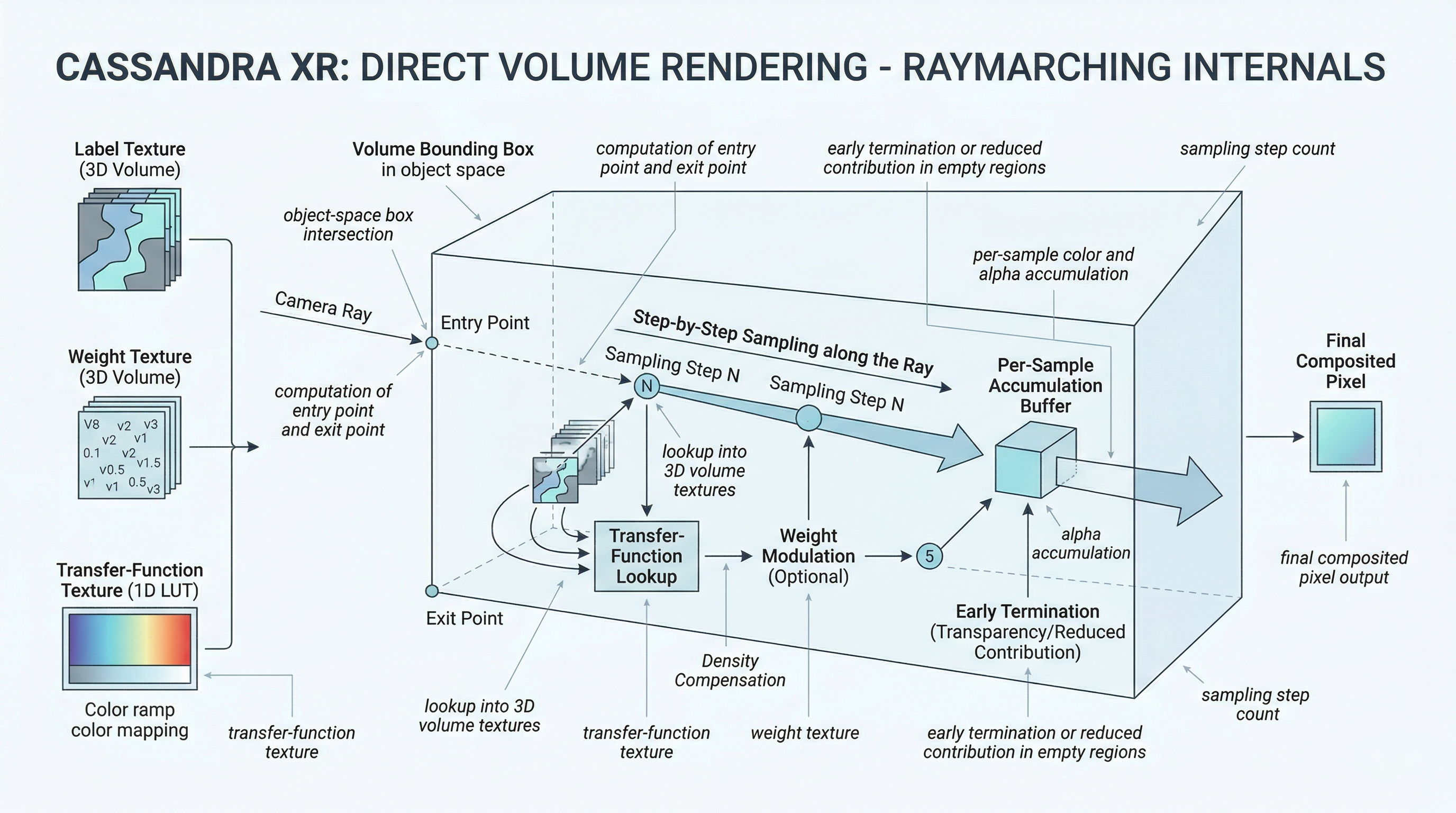

Raymarching internals diagram

Raymarching internals used by the volume shaders, including sampling, transfer-function lookup, and lighting accumulation through the active volume.

Quest Shader Path​

Assets/Shaders/VolumeDVR_URP_Quest.shader is the mobile-oriented path.

It is designed around:

  • reduced sampling cost
  • lower-precision texture formats
  • coarse skip behavior in empty regions
  • scale-aware density compensation

This is the practical reason the application can target Quest at all, but it also explains why reload and quality tradeoffs are more visible on that platform.

Resource Lifecycle And Reloads​

Before a new volume is loaded, CleanupPreviousTextures():

  • unbinds current textures from the material
  • replaces them with fallback black textures
  • destroys old Texture3D and Texture2D objects
  • recreates label control state

On Android, it also calls:

  • Resources.UnloadUnusedAssets()
  • GC.Collect()

This makes the reload path safer in low-memory situations, but it also contributes to visible hitches when switching modalities.

Rendering Constraints​

The current render pipeline is effective, but it has clear constraints:

  • CPU-side decode and unpack before GPU upload
  • full texture reconstruction on reload
  • no partial streaming or bricking
  • no persistent texture pooling between modality swaps
  • platform-specific shader duplication

These are reasonable prototype choices, but they define the current performance envelope.

Technical Lineage​

The renderer currently shipped in CASSANDRA XR is the direct volume-rendering path implemented in this repository.

Related public context:

  • VRDF SDK
    • documents the data format and reference runtime assumptions around .vrdf
  • HybridMedRenderer
    • provides useful lineage context for earlier hybrid surface-plus-volume rendering experiments

The current project, however, is documented around the concrete viewer runtime in VolumeDVR and the URP shaders listed above.
