Backend Integration and Contracts

This page documents the boundary between the Unity XR client and the external services it depends on.

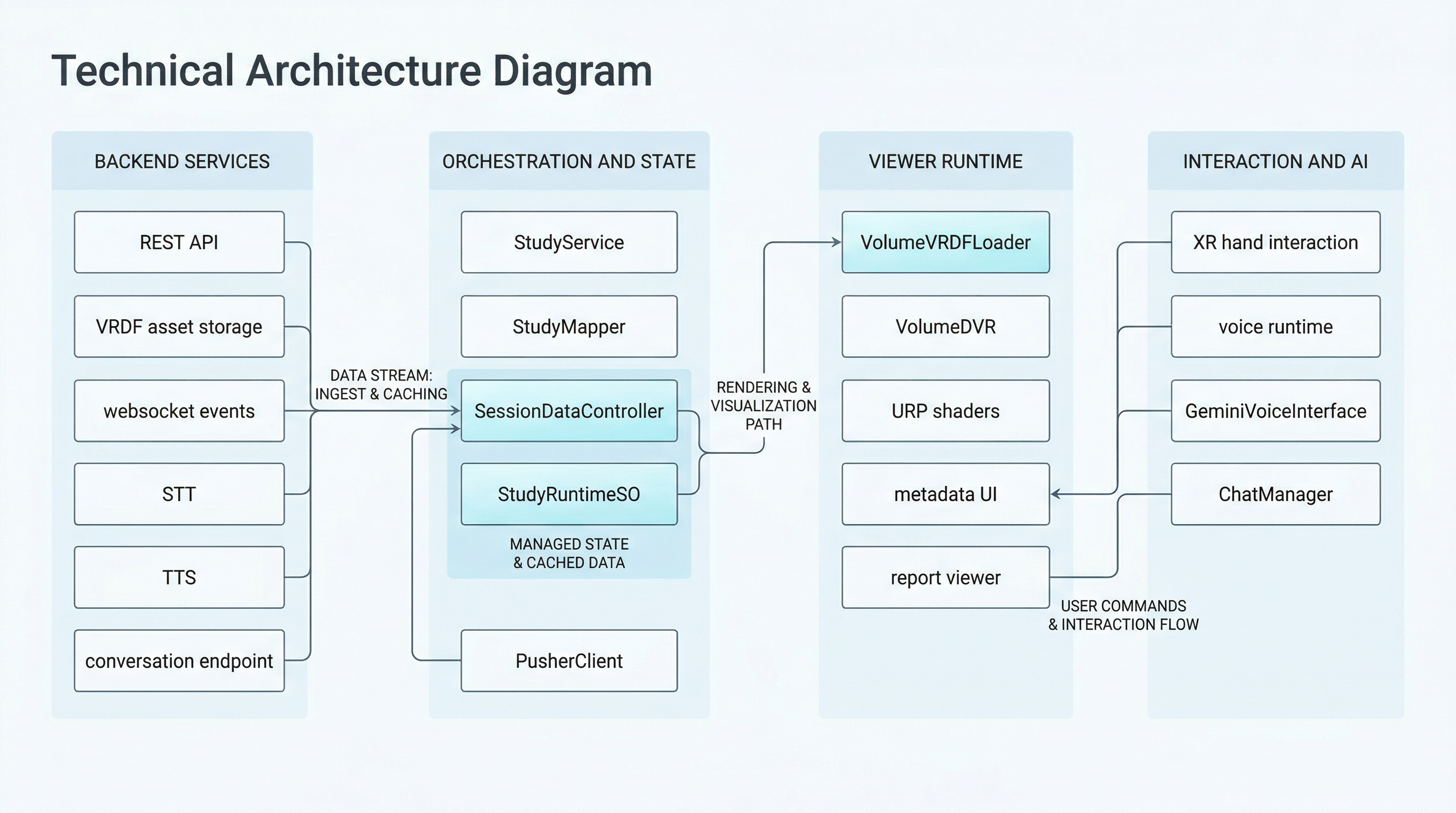

Backend integration context within the CASSANDRA XR system

Backend-facing context for the XR client, showing how REST, websocket, and study-scoped AI endpoints feed the runtime orchestration path.

It focuses on the contracts visible in this repository:

  • REST study payloads
  • downloaded volume assets
  • websocket events
  • dynamic STT and TTS endpoints
  • study-scoped conversation endpoint usage

Scope​

The backend logic itself is not implemented in this repository.

What the XR client does define is:

  • how study payloads are deserialized
  • which fields are required to populate runtime state
  • how volume assets are recognized
  • which websocket payloads trigger reload behavior

The main classes for this boundary are:

  • Assets/Scripts/API/Ochestrator/StudyService.cs
  • Assets/Scripts/API/DataContract/JsonFormatUtility.cs
  • Assets/Scripts/API/DataContract/StudyMapper.cs
  • Assets/Scripts/API/Ochestrator/SessionDataController.cs
  • Assets/Scripts/API/Websocket/PusherClient.cs
  • Assets/Scripts/API/StudyRuntimeSO.cs
  • Assets/Scripts/Chatbot/GeminiClient.cs

REST Entry Point​

The current study fetch path starts with StudyService.

The configured REST endpoint is:

  • https://holonauts.fr/active

StudyService.FetchStudies():

  • performs an HTTP GET
  • uses CertsHandler
  • deserializes the JSON response into RootResponse
  • maps each backend study through StudyMapper

REST Payload Shape​

The repository-side transport contract is defined in JsonFormatUtility.cs.

RootResponse​

The top-level payload currently expects:

  • success
  • data
  • count
  • picovoice_key
  • stt_key
  • tts_key

In the current client, picovoice_key, stt_key, and tts_key are treated as dynamic runtime configuration values rather than static build configuration.

StudyRaw​

Each study item currently expects:

  • id
  • title
  • code
  • patient_id
  • status
  • study_date
  • is_vr
  • conversation_url
  • assets
  • patient

AssetRaw​

Each asset entry currently expects:

  • id
  • filename
  • asset_type
  • download_url

PatientRaw​

The embedded patient structure currently expects:

  • id
  • first_name
  • last_name
  • date_of_birth
  • gender

Study Mapping Contract​

The client does not expose backend DTOs directly to the rest of the runtime.

StudyMapper.Map() translates StudyRaw into StudyForUnity, including:

  • study identity fields
  • patient information
  • conversation_url
  • a filtered list of VrdfAsset entries

This is the main point where backend naming conventions are normalized into viewer-facing assumptions.

VRDF Asset Recognition Rules​

StudyMapper only keeps assets that look like volume files according to two checks:

  • filename ends with .vrdf
  • asset_type ends with _vrdf

If both checks do not pass, the asset is ignored by the viewer-side volume pipeline.

The derived modality name then comes from:

  • the asset_type prefix before _vrdf, or
  • the filename suffix before _...

This means the backend and client currently share an implicit convention around asset_type and filename structure.

Runtime State Contract​

After mapping, SessionDataController applies the selected study into StudyRuntimeSO.

The runtime state currently stores:

  • study id
  • title
  • code
  • study date
  • isVr
  • converationURL
  • patient data
  • the list of VrdfAsset

This object is then read by UI, render, and voice systems.

Download Contract​

Once studies are fetched, SessionDataController downloads every VrdfAsset.downloadUrl into the cache path.

Important implementation details:

  • destination is Application.persistentDataPath unless overridden
  • files are written through a temporary .part path
  • existing files are reused
  • progress is emitted as scene-level events

The volume renderer therefore depends on local file availability, not direct in-memory asset streaming from HTTP.

WebSocket Contract​

Real-time session changes arrive through PusherClient.

The current websocket URL is:

  • ws://holonauts.fr:2025/app/9weqrk5tbh6jukkrngvb?protocol=7&client=js&version=8.2.0&flash=false

The current channel is:

  • vr-status

The client handles Pusher-style frames and reacts specifically to:

  • pusher:connection_established
  • pusher_internal:subscription_succeeded
  • vr.status.changed
  • pusher:error

vr.status.changed Payload​

The websocket payload shape currently expected by the XR client is represented by PusherClient.VrStatusPayload.

The fields are:

  • study_id
  • study_code
  • study_title
  • patient_name
  • is_vr
  • action
  • timestamp
  • message

Only part of this payload is used to drive runtime behavior today. The key fields for reload decisions are study_code and is_vr.

Reload Behavior​

SessionDataController subscribes to PusherClient.OnVrStatusChanged.

When it detects a relevant change:

  • it clears StudyRuntimeSO
  • it emits OnReloadRequested

The rest of the scene is then expected to restart the load pipeline.

This means websocket events are not directly mutating the scene graph. They are used as a trigger into the same orchestration path used by normal startup.

Voice And AI Endpoint Contracts​

The voice and conversation stack uses multiple backend-facing endpoints.

Dynamic Runtime Config​

From the REST root payload:

  • picovoice_key becomes SessionDataController.PicovoiceAccessKey
  • stt_key becomes SessionDataController.SttUrl
  • tts_key becomes SessionDataController.TtsUrl

These values are published once fetched and can be consumed by dependent runtime systems.

Conversation Endpoint​

The per-study conversation endpoint comes from:

  • StudyRaw.conversation_url

This is copied into:

  • StudyForUnity.converationURL
  • StudyRuntimeSO.converationURL

GeminiClient then uses a provided endpoint to POST JSON requests with a question field.

Practical Contract Assumptions​

The Unity client currently assumes:

  • the /active endpoint returns at least one valid study
  • study assets follow the VRDF naming rules expected by StudyMapper and VolumeDVR
  • the backend delivers Picovoice, STT, and TTS endpoints through the root study payload
  • websocket payloads can be parsed as Pusher frames plus VrStatusPayload
  • the study conversation endpoint is valid for POST-based prompt continuation

If any of those assumptions change, the breakage will usually show up first in StudyMapper, SessionDataController, or PusherClient.

Security Note​

This page documents the current integration contract, not a production-ready security posture.

The present implementation still includes:

  • permissive certificate handling
  • plain ws:// websocket transport
  • Android cleartext allowance

Those details are covered more fully in Platform, Build, and Security.
